Qkg Vise Precision Toolmakers Vise
產品描述
Made of high-quality alloy steel.
The hardness of working surface reaches HRC58-62.
Quickly to clamp and easy to operate.
Used for precision measurement and inspection precision grinding, EDM and wire-cutting machine.
Guarantee high accuracy in any position.

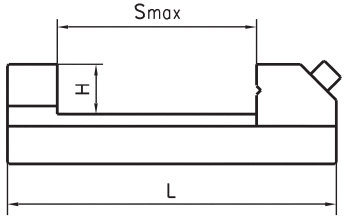

| B (mm) | H (mm) | Smax (mm) | L (mm) | Model No. |
| 26 | 9.15 | 22 | 65.4 | 428-9211 |
| 36 | 20 | 40 | 100 | 428-9212 |
| 38 | 20 | 44 | 105 | 428-9213 |
| 50 | 25 | 65 | 140 | 428-9221 |
| 63 | 32 | 85 | 175 | 428-9225 |
| 73 | 35 | 100 | 190 | 428-9231 |
| 80 | 40 | 100 | 200 | 428-9235 |
| 88 | 40 | 125 | 235 | 428-9238 |
| 100 | 45 | 125 | 245 | 428-9241 |
| 125 | 50 | 160 | 285 | 428-9251 |
| 150 | 50 | 200 | 330 | 428-9261 |
| 150 | 50 | 250 | 380 | 428-9262 |
| 150 | 50 | 300 | 430 | 428-9263 |
